Buy Dial Indicator Online at Best Prices

Dial Indicators From AtoZ Shop

Dial indicators are precision measuring instruments used to detect small linear movements, dimensional variations, alignment errors, and surface irregularities with exceptional accuracy. They are widely used across engineering, machining, manufacturing, automotive, tool rooms, and quality inspection departments where even minor deviations can affect product performance. These instruments play an important role in precision measurement by helping professionals verify tolerances, inspect machined components, and align mechanical assemblies accurately.

Available in different configurations, a dial indicator is suitable for measuring runout, flatness, concentricity, and displacement during machining and inspection processes. Depending on the application, professionals may choose mechanical, digital, or lever-operated models to achieve reliable and repeatable measurement results.

About Dial Indicators

A dial indicator is a precision instrument that converts small linear movements into readable measurements displayed on a circular dial or digital screen. It consists of a measuring tip, spindle or lever mechanism, internal gears, and a calibrated display that allows users to identify minute dimensional changes with excellent precision. These instruments are commonly mounted on magnetic bases or specialised fixtures during inspection work.

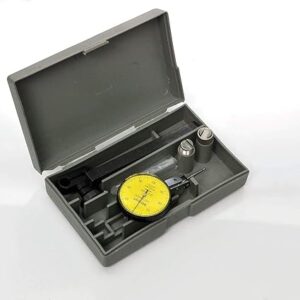

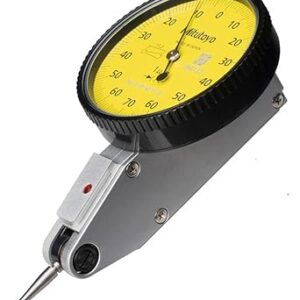

Several variations are available for different measuring applications. A dial test indicator uses a pivoting lever mechanism for measuring difficult-to-reach surfaces and alignment checks, while a digital dial indicator provides electronic readings with enhanced readability. A lever dial indicator is especially useful when measuring fine movement in confined spaces, whereas a dial gauge indicator is commonly used for general dimensional inspection and machine setup.

Benefits of Dial Indicators

Dial indicators provide highly accurate measurement of small movements and dimensional variations. They improve alignment checks, support quality control, enhance inspection accuracy, detect machining errors, and ensure consistent precision across engineering, manufacturing, and maintenance applications.

High Precision Measurement
Dial indicators detect extremely small dimensional changes, making them ideal for precision engineering, machining, and quality inspection applications.
Supports Accurate Machine Alignment
They help verify alignment, runout, flatness, and concentricity, improving machining accuracy and assembly precision.
Easy Reading Options
Mechanical and digital displays allow users to obtain clear measurement readings quickly during inspection and maintenance tasks.
Reliable Quality Control
Dial indicators help identify dimensional variations before components are assembled, supporting consistent manufacturing quality.
Versatile Industrial Use
These instruments are suitable for workshops, production facilities, laboratories, maintenance departments, and precision engineering environments.

Applications & Industries

Dial indicators are widely used wherever precise dimensional inspection and alignment verification are required.

Manufacturing Industry
Manufacturers use dial indicators to inspect machined components and verify production tolerances during quality control.
Precision Machining
Machinists check spindle runout, workpiece alignment, and machine accuracy before and during machining operations.
Automotive Industry
Technicians inspect rotating components, engine assemblies, brake systems, and transmission parts for accurate alignment.
Tool Rooms and Maintenance
Maintenance teams use dial indicators for machine setup, equipment calibration, and precision alignment during servicing.
Quality Inspection Laboratories
Inspection professionals use dial indicators to verify dimensional accuracy and ensure components comply with engineering specifications.

How to Choose the Right Dial Indicator

Selecting the appropriate dial indicator depends on the required measuring range, resolution, accuracy, mounting method, and application. Standard plunger-style indicators are suitable for general measurement tasks, while lever-type indicators provide greater flexibility when inspecting angled or restricted surfaces. Digital models offer faster reading and additional functions, whereas mechanical indicators remain dependable for routine workshop use.

Users should also consider build quality, measuring sensitivity, repeatability, and compatibility with magnetic bases or fixtures. Choosing a precision instrument designed for the intended inspection task improves measurement consistency and overall inspection efficiency.

Safety & Usage Tips

Before use, inspect the measuring tip and dial mechanism for damage, dirt, or excessive wear. Mount the indicator securely to prevent movement during measurement and ensure the contact point touches the workpiece correctly. Avoid applying excessive force to the measuring tip, as this may affect accuracy or damage internal components.

After use, clean the instrument carefully and store it in a protective case away from moisture, dust, and impact. Periodic calibration and proper handling help maintain long-term measurement accuracy and reliable inspection performance.

Why Choose AtoZ Shop

AtoZ Shop supplies precision measuring instruments, industrial tools, workshop equipment, and engineering accessories for professionals across manufacturing, maintenance, machining, and quality inspection industries. With years of experience serving both wholesale and retail customers, the platform offers dependable measuring solutions for various industrial applications.

Customers benefit from genuine products, competitive pricing, reliable customer support, and a carefully selected range of precision instruments that meet professional requirements. Whether equipping a workshop, inspection laboratory, or production facility, AtoZ Shop provides dependable solutions backed by industry expertise.

Conclusion

Dial indicators remain essential precision measuring instruments for detecting small dimensional variations, verifying machine alignment, and maintaining manufacturing accuracy. Their ability to measure runout, flatness, concentricity, and displacement makes them indispensable across engineering, machining, automotive servicing, and quality inspection environments.

Understanding the different types of dial indicators and selecting the appropriate model for specific inspection tasks helps improve measurement accuracy and production quality. With proper calibration, careful handling, and routine maintenance, dial indicators continue to provide dependable performance for precision measurement applications.

FAQs

What is a dial indicator used for?
A dial indicator is used to measure small linear movements, runout, flatness, concentricity, alignment, and dimensional variations during machining and inspection.
What is the difference between a dial indicator and a dial test indicator?
A dial indicator typically uses a plunger mechanism, while a dial test indicator uses a pivoting lever for measuring surfaces in restricted or angled positions.
Where are dial indicators commonly used?
They are widely used in manufacturing, machining, automotive workshops, tool rooms, maintenance departments, engineering laboratories, and quality inspection facilities.
What is a digital dial indicator?
A digital dial indicator displays measurements electronically on an LCD screen, allowing quick reading and improved measurement convenience.
How should a dial indicator be maintained?
Keep the instrument clean, avoid impacts, store it in a protective case, inspect the measuring tip regularly, and calibrate it periodically for accurate measurements.
Why is calibration important for dial indicators?
Calibration helps maintain measurement accuracy, ensures reliable inspection results, and supports consistent quality control throughout manufacturing processes.
Can dial indicators measure machine alignment?
Yes. Dial indicators are commonly used to verify shaft alignment, spindle runout, machine setup, and the positioning of precision mechanical components.
